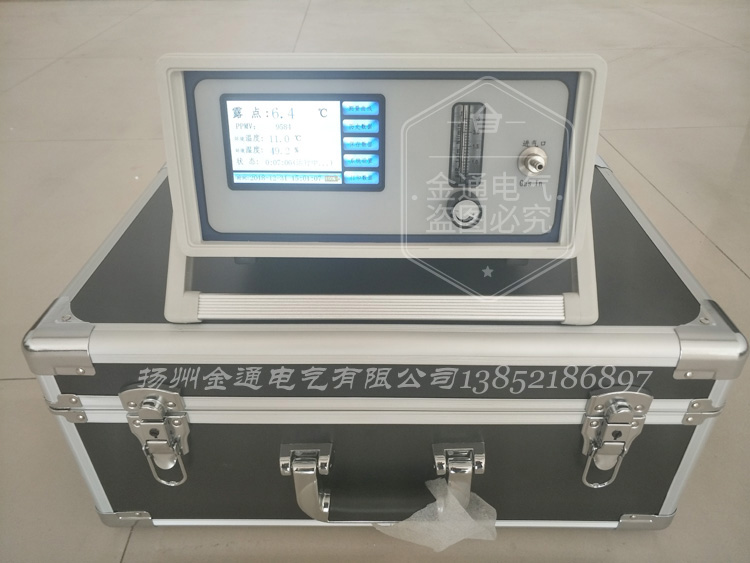

SF6智能微水测试仪

SF6智能型微水测试仪 产品介绍 Product Introduction

该SF6智能型微水测试仪适用于空气、氮气、惰性气体及任何不含腐蚀性介质的气体的湿度测量该SF6智能型微水测试仪采用欧洲标准技术;RS232接口、可与串口打印机相连;该SF6智能型微水测试仪采用大容量设计，可存储100组测试数据；标准支持： DL/T 506-2007，GB/T 8905-1996，DL/T 846.5-2004

 The precision dew point meter is an ideal choice for industrial conditions of low dew point that require control of dry point. It is provided with the option to eliminate chemical substances, which enables the dew point meter to carry out precise and stable measurement under the conditions of high concentration chemical substances and detergents, so as to ensure accurate measurement between calibration intervals. Not only can this function be implemented online through the control system, but it can also be implemented regularly according to the preset time interval.
该SF6智能型微水测试仪是在低露点且需要控制干点的工业环境的理想选择。它有化学物质清除选项，这使得该露点仪在高浓度化学物质和清洁剂的环境中能进行稳定的测量，从而每次校验间隔之间的准确测量。这项功能即能通过控制系统在线执行，也能按预先设定的时间间隔定期执行。

产品别称:

智能微水测量仪、微水测量仪、微水仪、智能微水仪、SF6微水仪、SF6智能微水仪、SF6气体微水仪、SF6微水分析仪，SF6智能微水测量仪、SF6气体微水测量仪、SF6微水测量仪、微量水分测量仪、SF6微量水分测量仪、六氟化硫微水测量仪,SF6智能型微水测试仪

SF6智能型微水测试仪 特点优势 Selection Reference

II. Main features

二、主要特点

4.3" TFT touch screen design

4.3寸TFT触摸屏设计

32-bit ARM MCU

32位ARM单片机

Separately designed air way and circuit

气路和电路分开设计

Large capacity storage function

大容量储存功能

Digital display of battery electric quantity

电池电量数字显示

Good repeatability, high response speed

重复性好、响应速度快

Automatic calibration of gradient

斜率自动校准

Color LCD display

彩色液晶显示

Advanced probe protection function

***的探头保护功能

Anti-pollution, anti-disturbance

抗污染、抗干扰

High sensitivity, good stability

灵敏度高、稳定性好

Small, beautiful, easy to carry

体积小巧美观，易于携带

SF6智能型微水测试仪 技术参数 Technical Parameter

III. Technical indicators

三、技术指标

Measuring range: dew point -60℃~+20℃（0.1ppm－23700ppm） (compatible with ppmv, etc.)

Dew point precision: ±2℃ （在一定量程内）

(When the dew point temperature is lower than 0℃, the sensor output is frost point.)

Response time 63％[90％]

    +20→-20℃   Td   5s[45s]

    -20→-60℃   Td   10s[240s]

Resolution: dew point 0.1℃ or 0.1ppm

Repeatability: ±0.2℃

Gas flow: SF6 adjusted at 0.7~0.9L/min

Probe protection: stainless steel sintered filter screen

Working voltage: 110~220VAC, AC/DC dual-use

Storage temperature grade: -40~+70℃

Output port: standard USB

Operating environment: Temperature: -25~+60℃

                   Pressure: 0~10bar

                     Sample gas flow velocity: no influence

Lithium battery, AC/DC dual-use, automatic switching, protection against over-charging and over-discharging

Volume and weight: 372×266.5×134.5 (mm), 3.5kg

测量范围：露点-60℃～+20℃（0.1ppm－23700ppm）

露点精度：  ±2℃ （在一定量程内）

（当露点温度低于0℃，传感器输出为霜点）

响应时间63％[90％]

    +20→-20℃   Td   5s[45s]

    -20→-60℃   Td   10s[240s]

分 辨 率：露点0.1℃或0.1ppm

重 复 性：±0.2℃

气体流量：SF6调节在0.7～0.9L/min

探头保护：不锈钢烧结过滤网

工作电压： 110～220VAC，交直流两用

储存温度等级：-40～+70℃

输出接口： USB规范

操作环境： 温    度： -25～+60℃

           压    力： 0～10bar

           样气流速： 无影响

锂电池，交直流电两用，自动切换，过充过放保护功能

体积重量： 372×266.5×134.5（mm），3.5kg

IV. Introduction to meter appearance
